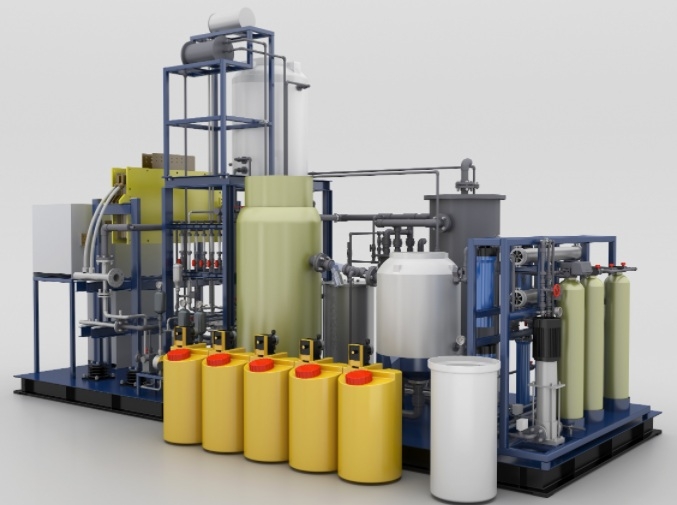

0.8% Sodium Hypochlorite Generator from Brine
Sodium Hypochlorite Generator from Brine electrolysis chlorine making system adopts advanced electrolysis techniques. Sodium hypochlorite solution can be produced on spot via electrolysis of brine water that is used to substitute highly-toxic liquid chlorine and chlorine dioxide disinfection system and hence is widely applied in domestic and overseas large and medium-sized water plants. Its safety and superiority is getting approval from an increasing number of customers. The equipment can satisfy disposal of life drinking water less than 1 million tons per hour.
Effective density of chlorine 0.6-0.8% Intake pressure: 0.2-0.4MPa Salt consumption: 3.5kg/kg Cl2
Direct current drain: 4.2kW/kg Cl2 Water drain: 125L/kg Cl2
Technique Explanation
Pure water→salt dissolving tank→booster pump→salt mixture→precision filter→electrolytic cell→sodium hypochlorite storage tank→measurement pump
Equipment Configuration
1. Compound titanium electrode: ruthenium and iridium coat layer, duration: 5 years
2. Tubular electrolysis tank: with its transparent barrel designing, it can help observe operating conditions of electrode.
3. Frame: carbon steel spray lacquer epoxy zinc-rich bottom, intermediate coat, metal fluosol perfluorocarbon painting, varnish 250μm
4. Pipeline: UPVC pipeline, Taiwan Huanqi
5. Product storage: FRP
6. Electrical appliance: Siemens or ABB PLC, electric appliance Schneider
Characteristics
1. The equipment can realize automatic operation and is secured and reliable;
2. It averts usage and transportation of highly-toxic chemicals, eradicates damage of toxic chemicals on the environment, operation staffs and surrounding residents and protects both the environment and mankind.
Application
Tap water plant disinfection, disinfection of municipal sewage, food processing, oil will disinfect water, hospitals, power plant cooling water disinfection.
Specification
Yield of active chlorine of seawater electrolysis sodium hypochlorite system can be made following customers’ requirements. The table only reveals standard model of the company.
|
Model |
Chlorine production (g/h) |
Available chlorine concentration |
Flow (L/h) |
Water consumption (m³/d) |
Salt consumption (kg/d) |
DC power consumption (kWh/d) |
Power supply (V) |
|
CSD100 |
100 |
0.6-0.8% |
12.5-17 |
0.3 |
7.2 |
9.6 |
380/415/440 |
|
CSD 500 |
500 |
0.6-0.8% |
62.5-83 |
1.5 |
36 |
48 |
380/415/440 |
|
CSD 1000 |
1000 |
0.6-0.8% |
125-167 |
3 |
72 |
96 |
380/415/440 |
|
CSD 2000 |
2000 |
0.6-0.8% |
250-333 |
6 |
144 |
192 |
380/415/440 |
|
CSD 5000 |
5000 |
0.6-0.8% |
625-833 |
15 |
360 |
480 |
380/415/440 |
|
CSD 10000 |
10000 |
0.6-0.8% |
1250-1667 |
30 |
720 |
960 |
380/415/440 |
